Kenwood DRV-N520 Full HD Dash Cam for Kenwood Multimedia Head Units

Kenwood DRV-N520 Full HD Dash Cam for Kenwood Multimedia Head Units

£179.99
Taxes included.

Talk it through first

Your registration (optional)
Call 07908 857341 Email

Send the model and year, with a photograph of the current screen if you have one, and we will confirm the exact specification, a fixed price and a fitting date. Most enquiries are answered the same day, and a message often reaches us faster than a call.

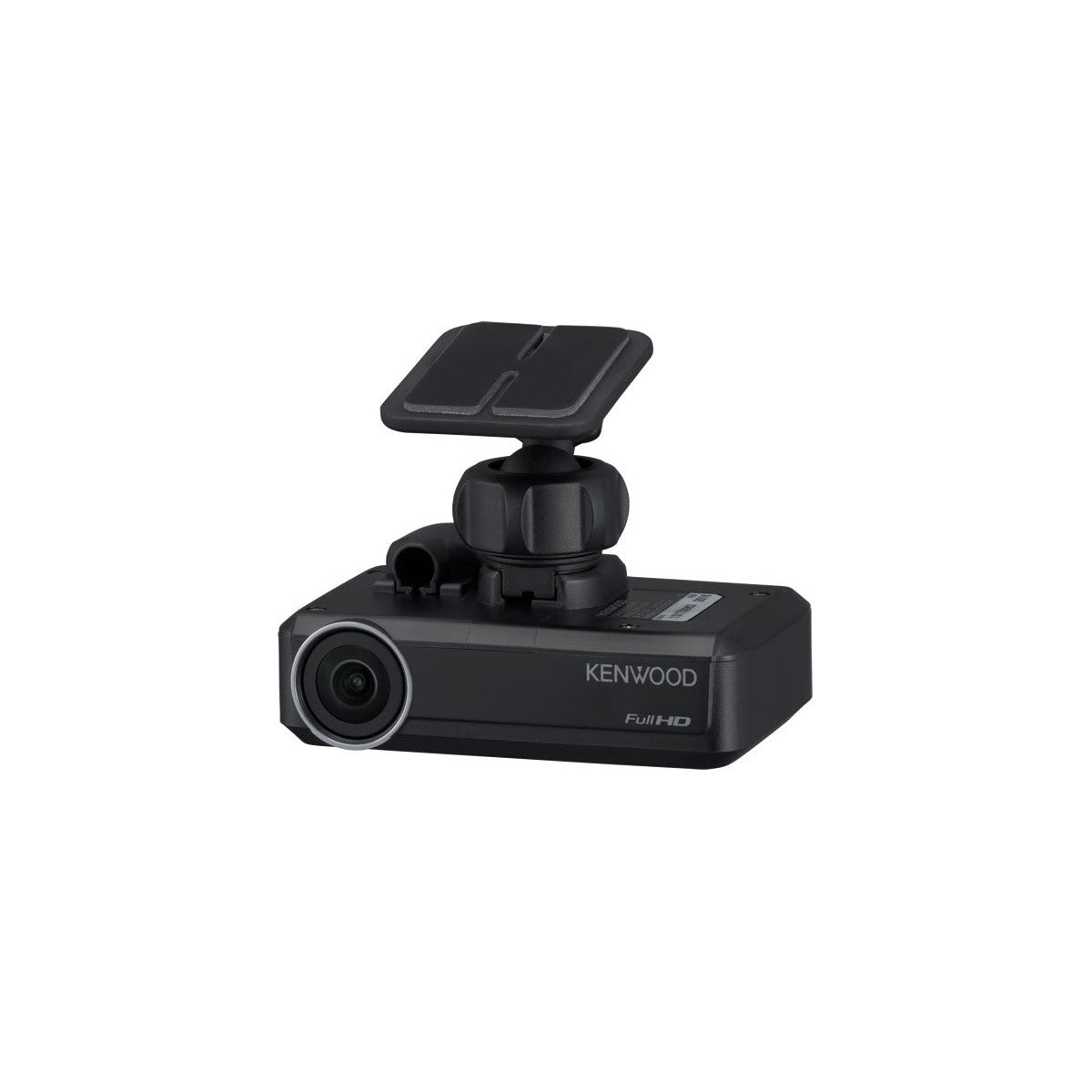

The Kenwood DRV-N520 is a compact Full HD dash cam designed to work alongside compatible Kenwood multimedia and navigation head units. It suits owners of a Kenwood double-DIN system who want recording integrated with the dash rather than a standalone screen. HDR keeps footage balanced in bright and dark scenes, while motion detection records activity around the front of the parked car.

Key features

  • Full HD 1920 x 1080 recording with efficient H.264 compression
  • HDR (High Dynamic Range) avoids under- or over-exposed footage
  • 27 frames per second for smooth, natural video
  • Motion detection records automatically when movement is sensed at the front of the vehicle
  • Security indicator acts as a deterrent in parking mode
  • Gyro sensor marks event footage and protects it in a separate area of the memory card
  • Forward collision warning alerts
  • Kenwood Drive Reviewer PC software for viewing recordings

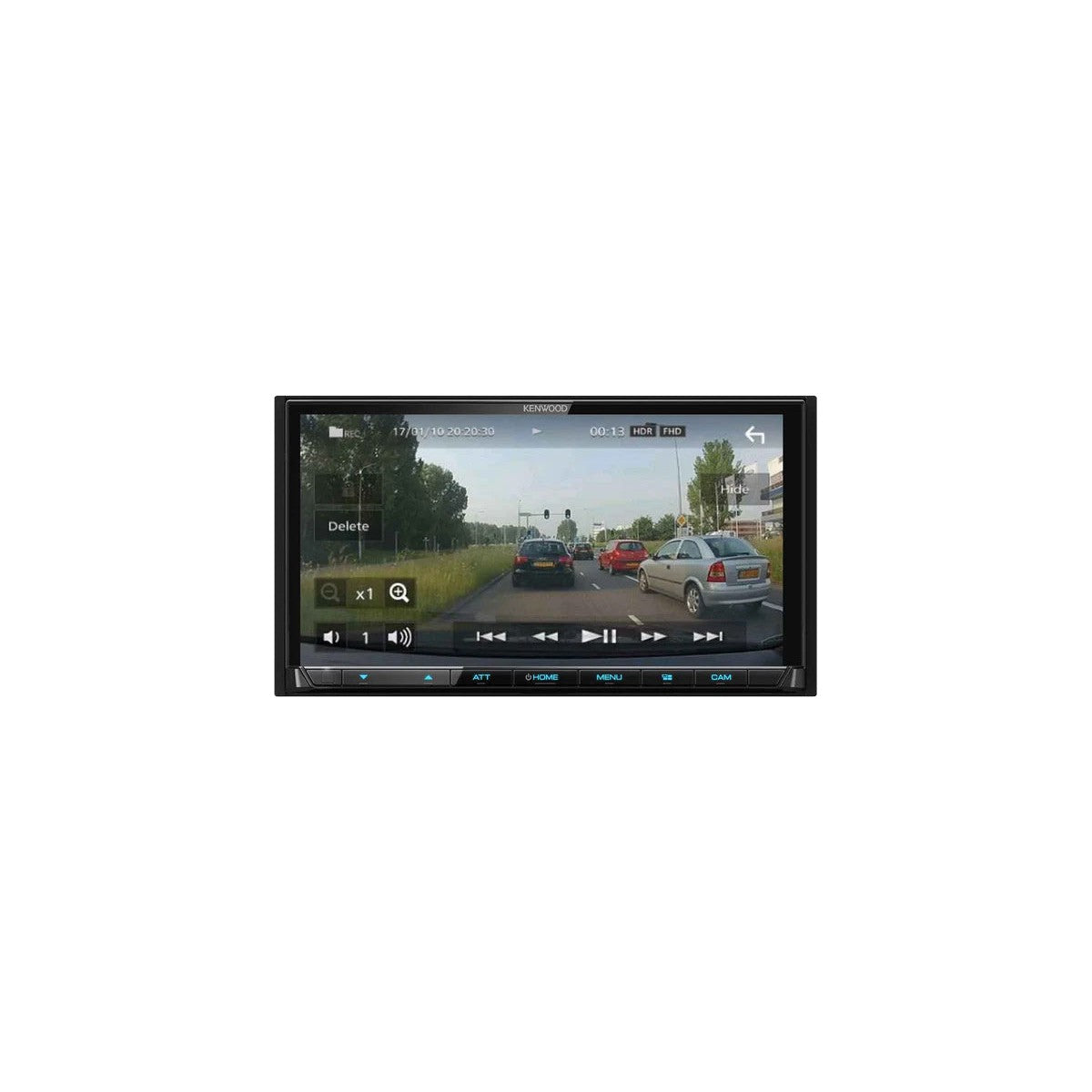

  • Compatible with a wide range of Kenwood DMX, DDX, DNX and DNR head units

Specifications

  • Resolution: Full HD 1920 x 1080
  • Codec: H.264
  • Frame rate: 27fps
  • HDR: yes
  • Event detection: gyro sensor
  • Parking: motion detection with security indicator
  • Storage: 8GB SD card
  • PC software: Kenwood Drive Reviewer
  • Required lead: Kenwood CA-C3AV RCA output lead
  • Compatible multimedia systems: DDX9717BTS, DMX7017DABS, DMX7018DABS, DMX7520DABS, DMX8019DABS, DMX8020DABS, DMX8021DABS, DMX9720XDS
  • Compatible navigation systems: DNR992RVS, DNR4190DABS, DNX451RVS, DNX518VDABS, DNX5180DABS, DNX5180BTS, DNX5190DABS, DNX7170DABS, DNX7190DABS, DNX8180DABS, DNX9180DABS, DNX9190DABS

Frequently asked questions

Which Kenwood head units work with the DRV-N520?

Kenwood lists the DDX9717BTS, DMX7017DABS, DMX7018DABS, DMX7520DABS, DMX8019DABS, DMX8020DABS, DMX8021DABS and DMX9720XDS multimedia units, plus the DNR992RVS, DNR4190DABS, DNX451RVS, DNX518VDABS, DNX5180DABS, DNX5180BTS, DNX5190DABS, DNX7170DABS, DNX7190DABS, DNX8180DABS, DNX9180DABS and DNX9190DABS navigation units.

Do I need anything else to connect it?

Yes. The Kenwood CA-C3AV RCA output lead is required to connect the camera to the head unit.

Does the DRV-N520 record while parked?

Yes. Motion detection starts recording when movement is sensed near the front of the vehicle, with the security indicator lit as a deterrent.

Fitting and installation

Fitting is not included. Installation prices vary, please enquire for more information if you require installation. 12K Retrofits can supply and fit this dash cam, with the wiring hidden and the camera hardwired for parking mode where supported.

Delivery

Delivered across the UK mainland by tracked courier. Delivery is included in the price shown.
