Thinkware ARC 900 2CH 4K Front & 2K Rear Touchscreen Dash Cam
Talk it through first
Send the model and year, with a photograph of the current screen if you have one, and we will confirm the exact specification, a fixed price and a fitting date. Most enquiries are answered the same day, and a message often reaches us faster than a call.

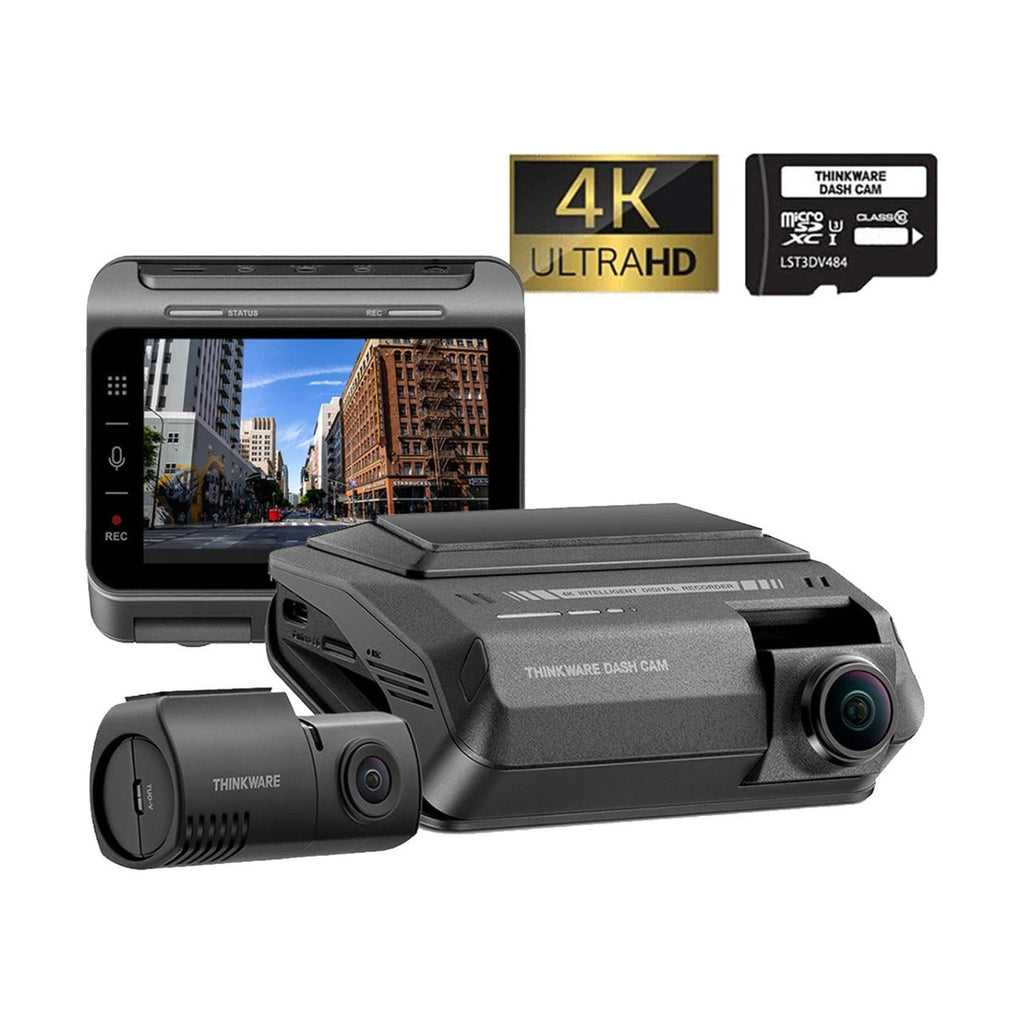

The Thinkware ARC 900 is a two-channel dash cam with a 3.5 inch IPS touchscreen, recording 4K UHD at the front and 2K QHD at the rear on Sony STARVIS 2 sensors. It suits drivers who want to review footage, check live view and change settings on the camera itself rather than through a phone. HDR frames captured at 60fps are merged into 30fps video to hold detail in harsh light.
Key features
- 3.5 inch LCD IPS touchscreen for settings, playback, live view and alerts
- 4K UHD front recording at 30fps, or 2K QHD at 60fps
- 2K QHD rear recording at 30fps
- 8.4MP Sony STARVIS 2 IMX678 front sensor, 5.14MP IMX675 rear sensor

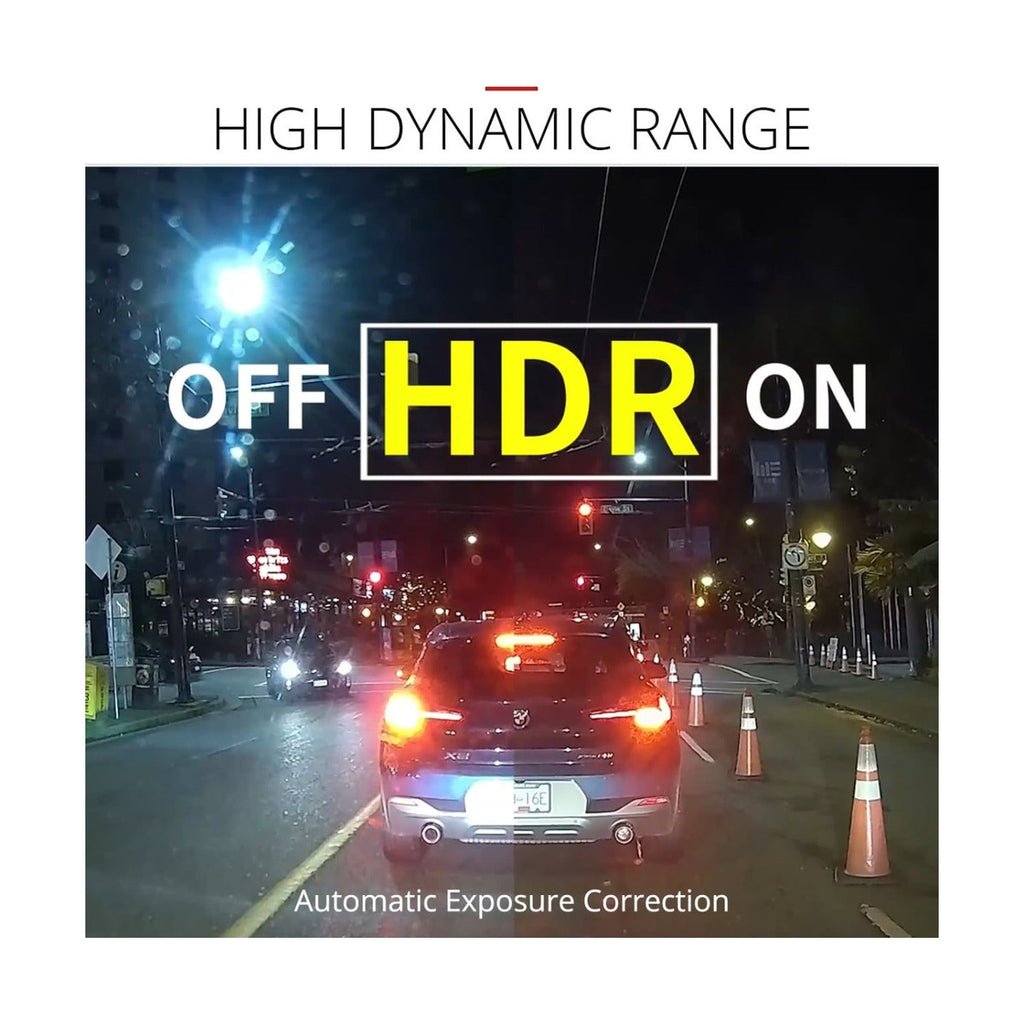

- HDR with Intelligent Dual Sensing merges two exposures for balanced footage
- Advanced IQ Tuning sharpens number plates and road signs in any light
- 147 degree front and 156 degree rear viewing angles
- GPS antenna included
- Hardwiring cable and Thinkware Connected SIM in the box
- Supports microSD cards up to 512GB
Specifications
- Resolution: front 4K UHD 3840 x 2160 at 30fps or QHD 2560 x 1440 at 60fps, rear 2K QHD 2560 x 1440 at 30fps
- Sensor: front 8.4MP Sony STARVIS 2 IMX678, rear 5.14MP Sony STARVIS 2 IMX675
- Frame rate: front 30 or 60fps, rear 30fps
- Viewing angle: front 147 degrees, rear 156 degrees (diagonal)
- Display: 3.5 inch LCD IPS touchscreen
- Storage: microSD 64GB to 512GB UHS-I, card with adapter supplied
- Interface: DC-IN, V-IN, microSD card slot, EXT, RADAR, GPS, USB-C
- GPS: external antenna included
- Connectivity: Thinkware Connected SIM included
- Power: DC 12/24V, hardwiring cable included
- Dimensions: 98 x 87 x 39.8 mm
- Weight: front 214.9g, rear 87g
- Operating temperature: -10 to 60 degrees C
What's in the box
- ARC 900 dash cam
- Rear camera
- Rear camera cable
- Mount with 3M tape
- Hardwiring cable
- Thinkware Connected SIM
- Adhesive cable holders (3)
- MicroSD memory card with adapter
- Quick start guide and warranty card
Frequently asked questions
Does the Thinkware ARC 900 have a screen?
Yes. A 3.5 inch IPS touchscreen on the camera handles settings, playback, live view and alerts without a phone.
Is a hardwire cable included with the ARC 900?
Yes. The hardwiring cable is in the box, along with the rear camera cable and GPS antenna.
Does the ARC 900 come with a SIM card?
Yes. A Thinkware Connected SIM is included in the box for the connected features.
Fitting and installation
Fitting is not included. Installation prices vary, please enquire for more information if you require installation. 12K Retrofits can supply and fit this dash cam, with the wiring hidden and the camera hardwired for parking mode where supported.
Delivery
Delivered across the UK mainland by tracked courier. Delivery is included in the price shown.
