Thinkware BCFH-50W 1080p IP68 External IR Rear Camera
Talk it through first
Send the model and year, with a photograph of the current screen if you have one, and we will confirm the exact specification, a fixed price and a fitting date. Most enquiries are answered the same day, and a message often reaches us faster than a call.

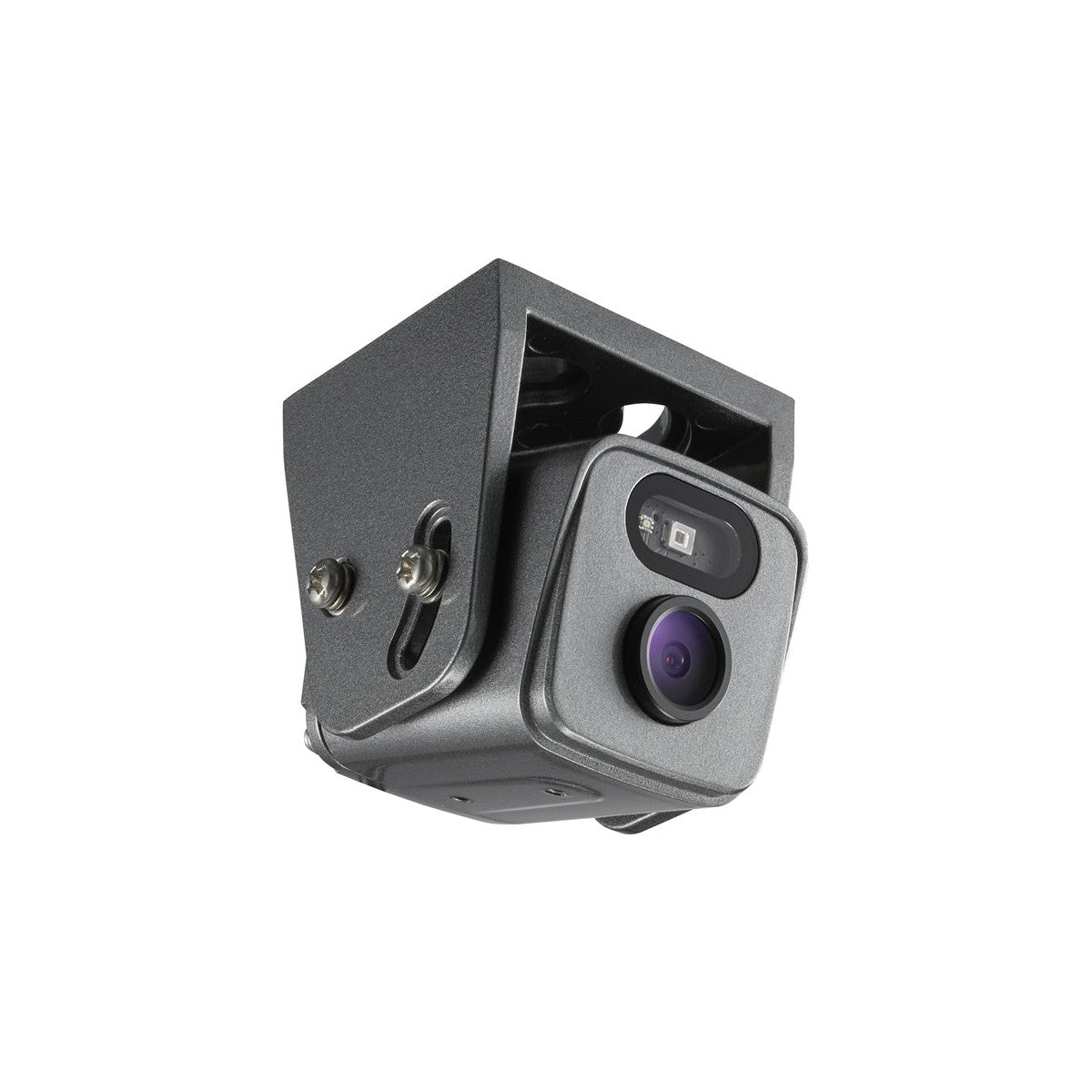

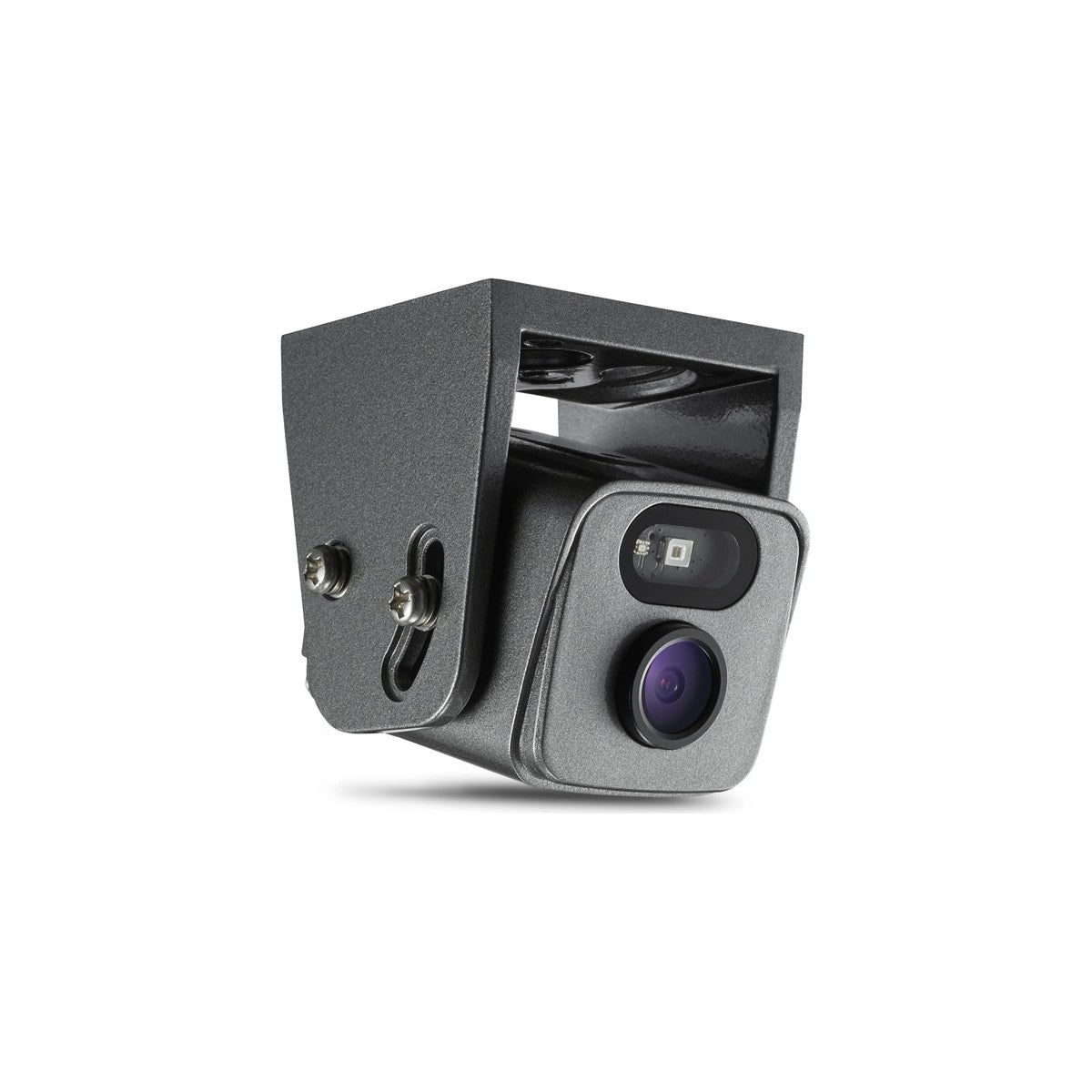

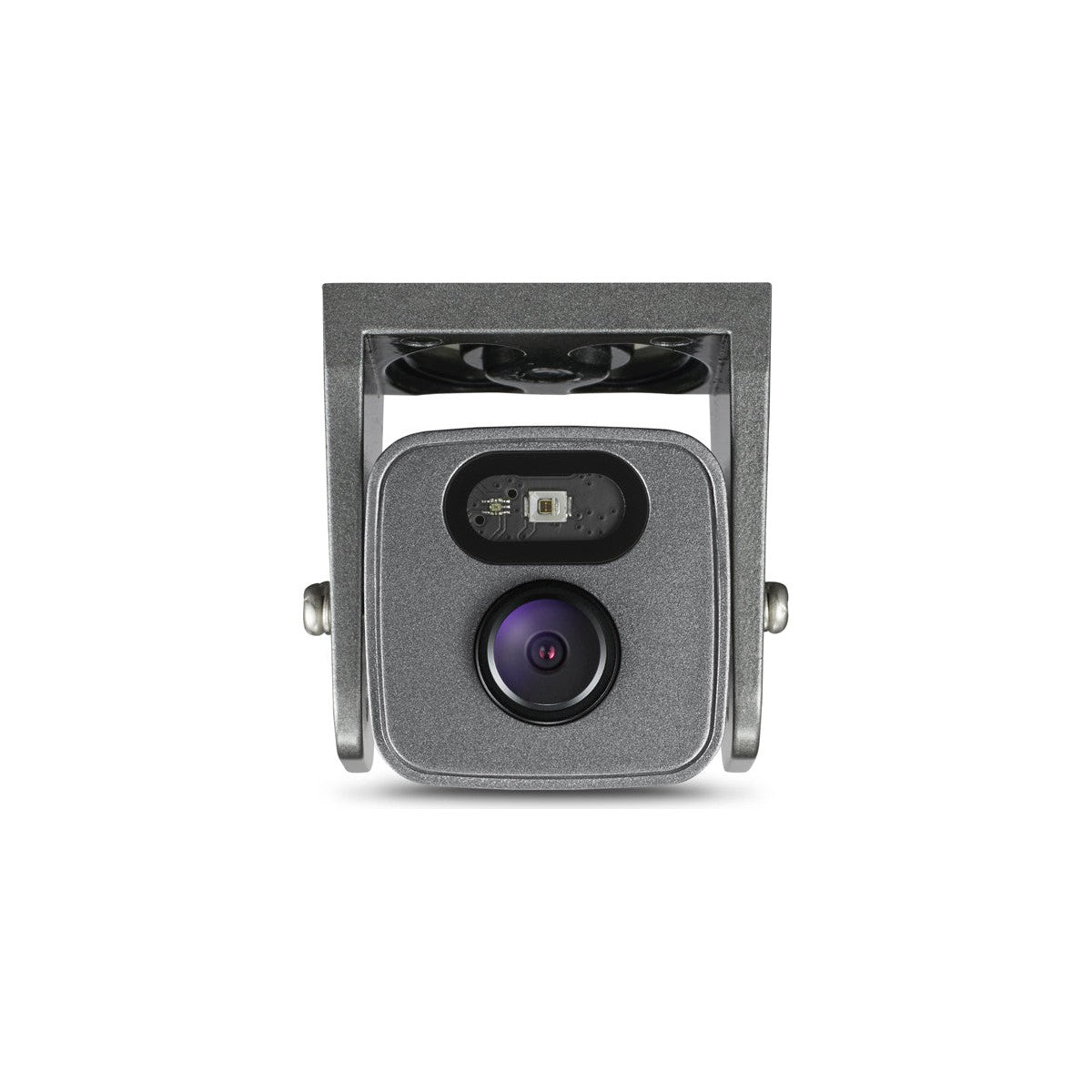

The Thinkware BCFH-50W is an external 1080p Full HD rear or side camera with infrared night vision for Thinkware F200 Pro, F790, X700 and T700 dash cams. It is built for vans, trucks and other vehicles with no rear window, where a standard interior rear camera cannot be used. The IP68 housing is waterproof and dustproof, so it can be mounted outside the vehicle.
Key features
- 1080p Full HD rear or side recording
- Built-in 940nm infrared light for clear footage in the dark
- Accurate colour recording during the day
- IP68 waterproof and dustproof housing
- 126 degree field of view
- Compact 45 x 34 x 43 mm body
- 7 metre lead included
- Works with the Thinkware TWA-MB100 multiplexer for multi-channel systems
Specifications
- Resolution: 1080p Full HD
- Night vision: built-in infrared, 940nm wavelength
- Viewing angle: 126 degrees
- Weather rating: IP68 waterproof and dustproof
- Dimensions: 45 x 34 x 43 mm
- Cable: 7 metre lead included
- Mounting: external, rear or side of vehicle
What's in the box
- BCFH-50W external IR camera
- 7 metre lead
- Right-angle adapter (must be used on all cameras)
Compatibility
Works with Thinkware F200 Pro, F790, X700 and T700 dash cams only. It can also be added to the Thinkware TWA-MB100 multiplexer as part of a multi-channel recording system.
Frequently asked questions
Will the BCFH-50W work with my Thinkware U1000 or Q850?
No. The BCFH-50W is only compatible with the F200 Pro, F790, X700 and T700. Other Thinkware models use different rear cameras.
Does the BCFH-50W record at night?
Yes. A built-in 940nm infrared light illuminates the area around the camera so it records detail in the dark. In daylight it records in normal colour.
Can the BCFH-50W be fitted on the outside of a van?
Yes. The IP68 housing is waterproof and dustproof, so it is designed for external mounting on vans and trucks with no rear window.
Fitting and installation
Fitting is not included. Installation prices vary, please enquire for more information if you require installation. 12K Retrofits can supply and fit this external camera alongside your dash cam, with the wiring hidden and the camera hardwired for parking mode where supported.
Delivery
Delivered across the UK mainland by tracked courier. Delivery is included in the price shown.
