Alpine RVC-E790IR Exterior Infrared Camera for DVR-F790 Dash Cam
Talk it through first
Send the model and year, with a photograph of the current screen if you have one, and we will confirm the exact specification, a fixed price and a fitting date. Most enquiries are answered the same day, and a message often reaches us faster than a call.

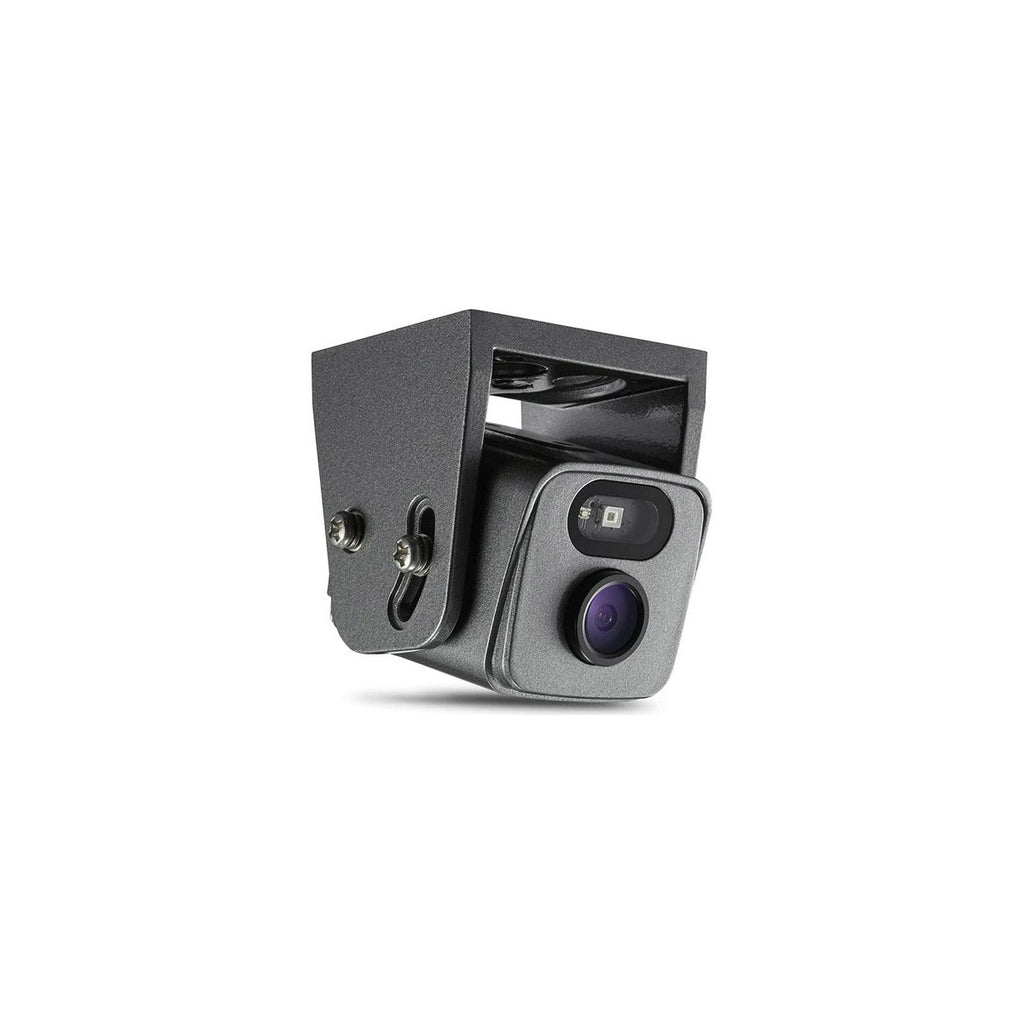

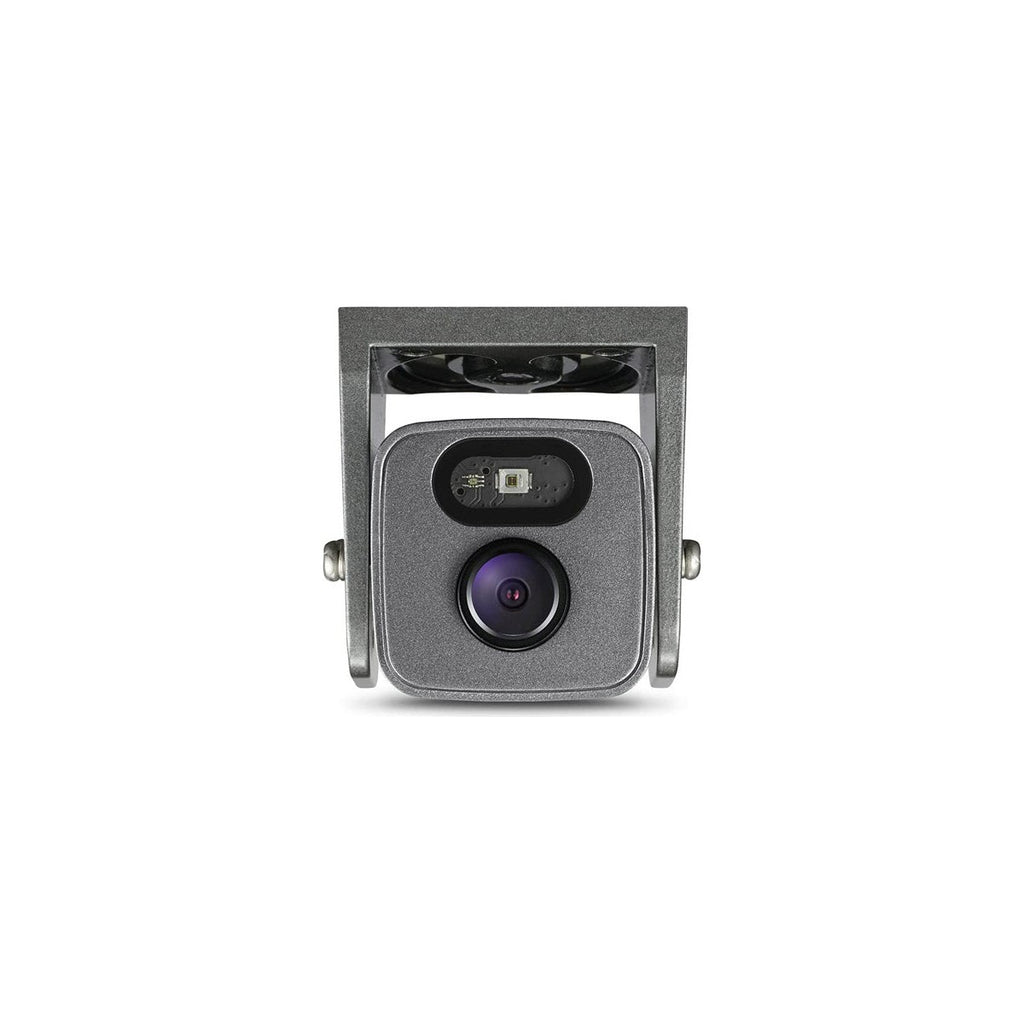

The Alpine RVC-E790IR is a weatherproof exterior infrared camera that adds an outside-mounted channel to the Alpine DVR-F790 dash cam. It suits vehicles that need a camera fitted outside the cabin, where a standard glass-mounted rear camera cannot go. The IP68 body is sealed against water and dust, with 940nm infrared lighting for clear footage at night.
Key features
- Full HD 1920 x 1080 recording at 30fps
- IP68 rated body, waterproof and dust-proof for harsh weather
- 940nm infrared light reveals detail in the dark
- Accurate colour and balance in daylight
- 126 degree diagonal viewing angle
- Adds to the RVX-100 camera extension hub as part of a multichannel system
- 2.0 m camera lead plus 20.0 m extension for long vehicles
Specifications
- Resolution: Full HD 1920 x 1080
- Camera: 2.12 MP Pixelplus
- Infrared wavelength: 940 nm
- Infrared intensity: 150 mW/sr at 700 mA
- Frame rate: 30 fps
- Viewing angle: 126 degrees diagonal
- Current consumption: 208 mA (IR on), 166 mA (IR off)
- Ingress rating: IP68
- Dimensions (W x D x H): 53.2 x 43.1 x 51.3 mm
- Weight: 106.0 g
- Cable length: 2.0 m plus 20.0 m
- Operating temperature: -10 to 60 degrees C
Compatibility
Works only with the Alpine DVR-F790 dash cam. It is designed to be added through the Alpine RVX-100 camera extension hub as part of a multichannel recording system.
Frequently asked questions
Can the RVC-E790IR be mounted outside the vehicle?
Yes. The body is IP68 rated against water and dust, so it is built for exterior mounting in harsh weather.
Does it work with the Alpine DVR-F800PRO?
No. This camera is only compatible with the Alpine DVR-F790.
How long is the cable?
The camera has a 2.0 m lead plus a 20.0 m extension, so it reaches the back of long vans and commercial vehicles.
Fitting and installation
Fitting is not included. Installation prices vary, please enquire for more information if you require installation. 12K Retrofits can supply and fit this camera alongside your dash cam, with the wiring hidden and the system hardwired for parking mode where supported.
Delivery
Delivered across the UK mainland by tracked courier. Delivery is included in the price shown.
